Equine Laparoscopy

View our range of Platforms and Accessories HERE

New Vessel Sealing Device

Advanced Bipolar Seal and Cut Technology

A multipurpose vessel sealing instrument for Laparoscopic and Open surgery.

Unique, tip first closure with patented floating hinge for vessel encapsulation
Seals vessels up to 7mm Ø
26.5mm seal length, 23.5mm cut length
5mm Ø (Lap) and 12mm Ø (Open) in 24cm, 36cm and 44cm (articulating and non-articulating)

New, compact Seal and Cut generator with warranty and a readily available supply of handpieces.

Brochure

Methodology

Further Information

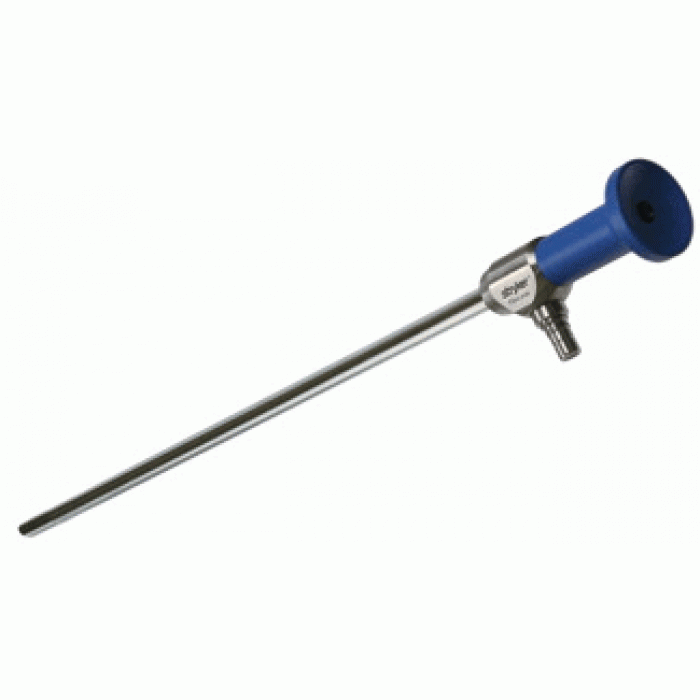

Stryker/Olympus 5mm Laparoscope

Ideal for Endoscopic Artificial Insemination in sheep and Small Animal/Equine Laparoscopic applications.

Cannula and Trocar optional extra.

Specifications:

Working Length: 300mm
Diameter: 5mm
Direction of View: 0 Degree or 30 Degree available

Stryker/Olympus 10mm Long Laparoscope

Ideal for Endoscopic Artificial Insemination in sheep and Equine Laparoscopic applications and equine dentistry.

Cannula and Trocar optional extra.

Specifications:

Working Length: 480mm
Diameter: 10mm
Direction of View: 0-degrees or 30-degrees available

Stryker/Olympus 10mm Laparoscope

Ideal for Endoscopic Artificial Insemination in sheep and Equine Laparoscopic applications and equine dentistry.

Cannula and Trocar optional extra.

Specifications:

Working Length: 300mm
Diameter: 10mm
Direction of View: 0-degrees or 30-degrees available

Stryker 40 Litre High Flow Insufflator

Late-model Stryker insufflator which features preset pressure and flow rate, leakage warning display and overpressure warning display and alarm.

Supplied with a hose for gas bottle. Designed to support a wide range of Laparoscopic insufflation applications.

Olympus UHI-3 35 Litre Insufflator

Late-model Olympus insufflator which features preset pressure flow rate, leakage warning display and overpressure warning display and alarm.

Supplied with a hose for gas bottle. Designed to support a wide range of Laparoscopic insufflation applications.

New Laparoscopic Insufflator Tubing

Disposable CO2 Insufflator Filter with 3m Tubing.

Has universal fitting however any additional connectors required can be supplied at no charge.

Filtration area 24cm squared for added protection and greater gas flow. Sterile and Latex-free.

New Verres Needles

Verres Needles equipped with a spring-loaded obturator to insufflate the abdomen in Laparoscopic surgery.

New Dr Fritz Needle Holder with Handle

Needle self-positioning, axial handle.
Small animal:

Left Turned 5mm, Working Length 22cm

Angled Upwards 5mm, Working Length 22cm

New Dr Fritz Injection and Puncture Cannula

Interchangeable needle (supplied 1mm x 26mm) with protection outer tube and inside a tube with Luer Lock connector.

Small animal: 5mm, Working Length 33cm

New Dr Fritz 5mm Hand Instruments

Dr Fritz Hand Instuments

Dr Fritz Catalogue

Instruments are easily dismantlable and rotatable through 360 Degrees. Each instrument is supplied complete with jaw insert, sheath and ratchet handle.

Biopsy Forceps, Double Action Jaws, with spikes 5mm, Working Length 33cm

Mini Metzenbaum Scissors

Curved Left, Insulated 5mm, Working Length 33cm

Grasping Forcep Universal, Insulated 5mm
Working Length 33cm

Dissecting Forcep Maryland, Turned, Insulated 5mm

Working Length 33cm

Grasping Forcep Claw, Straight, Metal 5mm
Working Length 33cm

Grasping Forcep Babcock 5mm
Working Length 33cm

New Dr Fritz 10mm Hand Instruments

Instruments are easily dismantlable and rotatable through 360 Degrees. Each instrument is supplied complete with jaw insert, sheath and ratchet handle.
