Companion Animal Arthroscopy

View our range of Platforms and Accessories HERE

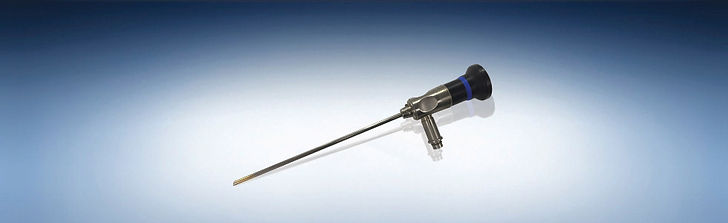

Rigid Arthroscopes Assorted

Stryker 2.7mm ENT/Arthroscope

As a new Arthroscope supplied with 4.0mm High Flow Cannula with 2 Rotating Stopcocks and Blunt Trocar.

Specifications:

Working length: 120mm (with Cannula 110mm)
Diameter: 2.7mm
Direction of view: 30 degree

Stryker 4mm ENT/Arthroscope

As a new Arthroscope supplied with new 5.8mm High Flow Cannula with 2 Rotating Stopcocks and Sharp and Blunt Trocar.

Specifications:

Working length: 120mm (with Cannula 110mm)
Diameter: 4mm
Direction of view: 30 degree

New Standard Line 3mm ENT/Arthroscope

Arthroscope supplied with 4mm Cannula and Sharp and Blunt Trocar.

Specifications:

Working length: 175mm (with Cannula 135mm)
Diameter: 3mm
Direction of view: 30 degree

New Standard Line 4mm ENT/Arthroscope

Arthroscope supplied with 5mm Cannula and Sharp and Blunt Trocar.

Specifications:

Working length: 175mm (with Cannula 135mm)
Diameter: 4mm
Direction of view: 30 degree

New Dyonics Slotted Cannula for Arthroscopes

The slotted cannula fits over Arthroscopes (up to 106mm in length) to allow the surgeon to cut meniscus or cartilage with an Arthroscopic knife under direct vision.

Does not lock into position so, therefore, has no fluid seal. Arthroscopic cutting knives sold separately.

New Olympus Arthroscopic Telescopes

1.9mm

A7505A

Telescope, Autoclavable, 30-degree direction of view, 65mm working length

WA70994A

Trocar tube, rotatable, 1 stopcock, graduated for 65mm telescopes

A7517

Trocar spike, triangular, for 65mm telescopes

A7519

Trocar spike, blunt, for 65mm telescopes

2.7mm

A70963A

Telescope, Autoclavable, 30-degree direction of view, Wide-angle field of view, 70mm working length

WA70992A

Trocar tube, rotatable, 1 stopcock, standard flow, for 70mm telescopes

A70978A

Trocar spike, triangular, for 70mm telescopes

A70979A

Trocar spike, blunt, for 70mm telescopes

A00507A

Sealing, set

Set of spare sealing rings: contains 2 large sealings (transparent) and 5 small sealings (black)

A0460

Light guide adapter for OES 4000 light-guide cables

00332

Light-guide adapter for Wolf light-guide cables

A5333

Eye-piece cup for telescopes

4mm

A70941A

Telescope, Autoclavable, 30-degree direction of view, 115-degree field of view, 160mm working length

WA70952A

Trocar tube, Rotatable,

1 Stopcock, Standard flow

Olympus 4mm 30deg sheath copy 3 cropped.

A70954A Trocar spike, Triangular

WA70953A

Trocar tube, Rotatable,

2 Stopcock, Standard flow

Olympus 4mm 30deg sheath copy 2 cropped.

A70955A Trocar spike, Blunt

New Dr Fritz Pneumatic Pressure Infusor

Used in conjunction with a Pressure Infusion Cuff, the infusor allows Intraarticular fluid pressure to be maintained automatically over a range of pressures and eliminates arduous hand pumping.

The continuously adjusted pressure setting enables better regulation. Supplied with 4m tubing to connect to central pressure supply.

Accessories:

Pressure Infusion Cuff 500ml - 1 Litre (for use with Infusor only)

Pressure Infusion Cuff 3 - 5 Litres (for use with Infusor only)

New Dr Fritz Pressure Infusion Cuff

500ml - 1 Litre (with manometer)

3 - 5 Litre (with manometer)

New Linvatec 10k Pump.

The simplest High-Performance Pump in Arthroscopy.

Ease of Use

Intuitive one-step/one -hand cassette loading
Quick Setup and priming
Integrated pole mount works with any standard I.V. pole
Compatible with video cart shelf or any flat surface

Superior performance

Immediate response
High flow
Maintains distension under even the most demanding situations
Robust autoclavable remote control

Specifications

Maximum set pressure 150mmHg
Maximum flow rating 2000ml/min
Weight: 3kg
Dimensions: 16.5cm tall, 20.3cm deep and 19.7cm wide
Voltage 90-240v

Brochure

10k100 Endoscopy Tube Set

Stryker Core Arthroscopic Shaver System

The Stryker Core Arthroscopic Shaver performs aggressive tissue resection and rapid bone debridement during Arthroscopic procedures.

It offers powerful, precision cutting and shaving to ensure maximum performance.

Small Joint and Large Joint handpieces available.

Features:

Touch Screen Display
Allows two handpieces to be connected at once

New Dr Fritz Small Animal Arthroscopy Hand Instruments

Dr Fritz Catalogue

Instruments provide easy handling and an ergonomic design with handles. All instruments are specifically designed for Small Animal Arthroscopy.

Bayonet Knife with Handle, 2.7mm

Banana Knife with Handle, 2.7mm

Mikro Picking Knife with Handle, 2.7mm

Hook Knife with Handle, 2.7mm

Curette Curved with Handle, 2.7mm

Ring Curette with Handle, 2.7mm

Meniscutome Smilie with Handle, 2.7mm (metal)

Hook Probe with Handle, 2.2mm

Special Elevator with Handle, 2.7mm (metal)

Coronoid Chisel with Handle, 3/4mm
Working Length 20cm (metal)

Milling Drill

2.2mm, Working Length 12cm, Rotating Handpiece and Long Lasting Drill Steel (Dismantable)

Replacement Drill Steel (for Milling Drill)

Protection and Transportation Sheath for Small Arthroscopes 12cm, Autoclavable

New Dr Fritz Small Animal Arthroscopy Punches, Forceps and Scissors 2/2.7mm

Universal Rongeur and Grasping Forceps, 2.7mm, Working Length 12 cm

Mini Rongeur and Biopsy Forceps, 2.2/2.7mm, Working Length 11cm

Mini Scissors for Arthroscopy, 2mm, Working Length 11cm

Alligator Grasping Forceps with Ratchet, 2.7mm, Working Length 12cm

Arthroscopic Hook Scissor, 2.7mm, Working Length 12cm

Arthroscopic Punch, 2.7mm, Working Length 12cm

Biopsy and Spoon Forceps, 2.7mm, Working Length 12cm

New Dr Fritz Small Animal Working Cannula Set

This system allows the specific exchange of different working cannulas. Beginning with the smallest diameter, the vet can always change to a bigger diameter by using the changing rods supplied. Cannulas are specifically designed for Small Animal Arthroscopy.

Working Cannula Set consists of:

3 Cannulas for Elbow 2.3mm, 2.9mm and 3.5mm, Working Length 3cm - 5.5cm
2 Cannulas for Shoulder 2.9mm and 3.5mm, Working Length 7cm - 8cm
2 Sharp Trocars
2 Changing Rods, 2.3mm and 2.8mm
